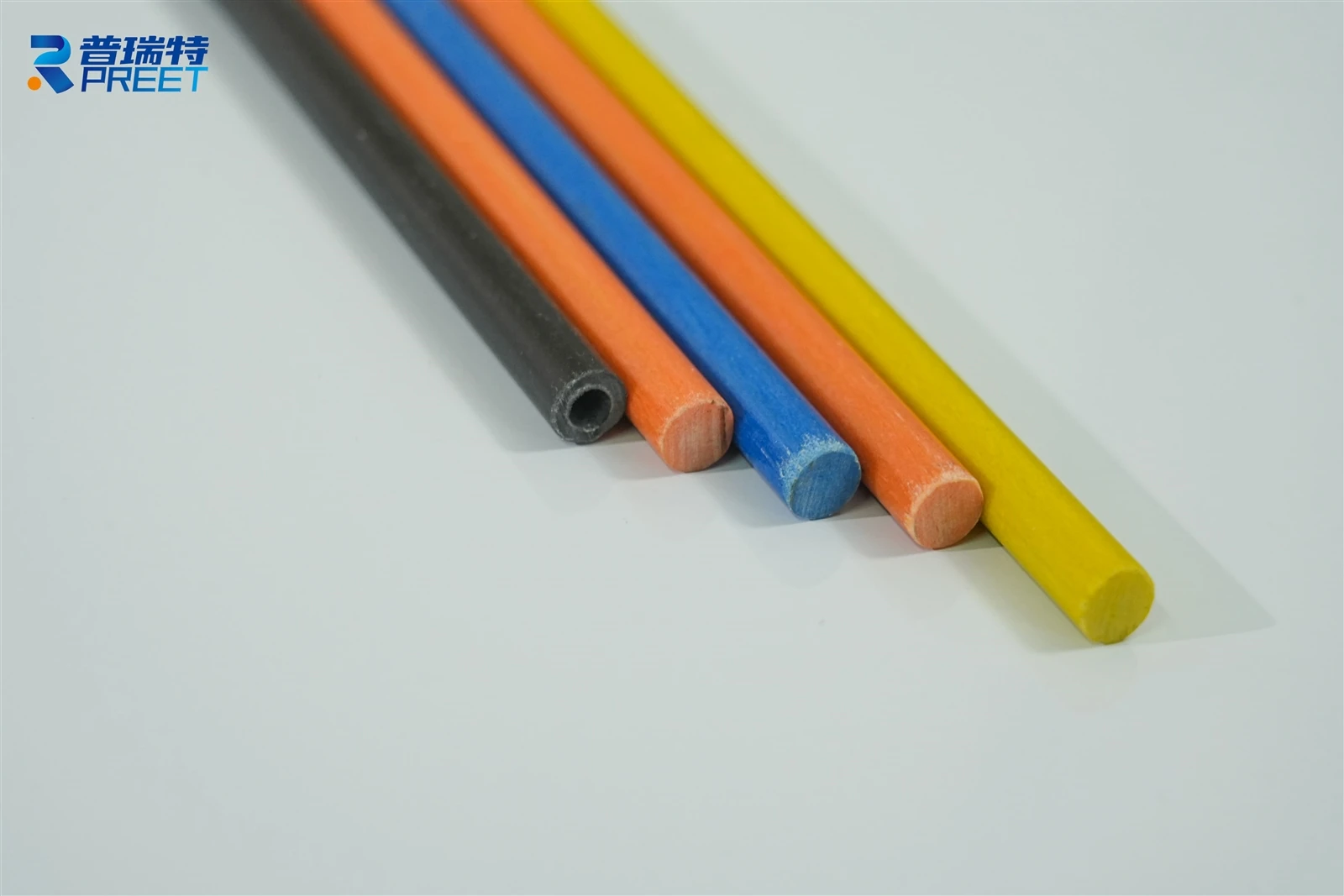

What Are Fiberglass Pultruded Rods?
Fiberglass pultruded rods are solid FRP profiles manufactured by continuously pulling fiberglass reinforcement and thermosetting resin through a heated forming die. This process creates a consistent circular profile with continuous reinforcement along the length of the rod.
Unlike conventional steel rods, fiberglass pultruded rods combine structural performance with corrosion resistance, electrical insulation and relatively low weight. These characteristics make them useful in electrical, construction, marine, agricultural and industrial applications where metallic materials may be exposed to corrosion, moisture or electrical hazards.
Fiberglass pultruded rods are available in different diameters, lengths, colors and resin systems. The correct specification should be selected according to the required mechanical performance, environment, installation method and end use rather than diameter alone.
Explore Preet Fiberglass Pultruded Rods for current product configurations and customization options.
How Are Fiberglass Pultruded Rods Manufactured?
The pultrusion process is a continuous manufacturing method designed to produce FRP profiles with a consistent cross-section and controlled reinforcement distribution.
1. Fiberglass Reinforcement
Glass fibers provide the primary structural reinforcement. Continuous fiberglass rovings are selected according to the required mechanical and dimensional performance.
2. Resin Impregnation
The fiberglass reinforcement is saturated with a thermosetting resin system. Polyester and vinyl ester systems are commonly used for different industrial requirements, while other resin options may be selected for specialized applications.
3. Heated Die Forming
The impregnated reinforcement is pulled continuously through a heated die. The die determines the rod diameter and circular profile while the resin cures and forms a rigid composite structure.
4. Cutting and Finishing
After curing, the continuous FRP profile is cut into the required lengths. Surface finish, color and dimensional tolerances can be specified according to the application and manufacturing requirements.
The continuous reinforcement produced by pultrusion is one of the main reasons fiberglass rods can provide a strong and consistent profile while remaining lightweight compared with many metallic alternatives.
Fiberglass Pultruded Rod Sizes and Specifications
Rod diameter is one of the most important parameters when specifying an FRP rod. Larger diameters generally provide a larger cross-sectional area, but the appropriate size still depends on the load direction, unsupported length, connection method and required safety margin.
| Specification | Typical / Available Range | Selection Consideration |
|---|---|---|
| Rod Diameter | 3–60 mm | Select according to load, stiffness, connection and installation requirements |
| Length | 1000–6000 mm, customized available | Consider transportation, handling and required finished length |
| Material | E-glass + thermosetting resin | Resin selection should match the service environment |
| Resin Options | Polyester / Vinyl Ester and customized systems | Consider corrosion, moisture, UV and chemical exposure |
| Surface | Glossy or matte | Select according to appearance, handling and application requirements |
| Color | Gray, yellow, black, green or customized | Color can support identification or project requirements |
Preet's current fiberglass pultruded rod product range lists diameters from 3 mm to 60 mm and standard lengths from 1000 mm to 6000 mm, with customized dimensions available. The manufacturer also lists fiberglass E-glass reinforcement with polyester or vinyl ester resin systems.
Key Properties of Pultruded Fiberglass Rods
High Strength-to-Weight Ratio
One of the main advantages of FRP rods is their ability to provide useful mechanical performance without the mass associated with many metallic components. This can simplify transportation, manual handling and installation.
Corrosion Resistance
Fiberglass rods do not rust like conventional carbon steel. They can therefore be considered for wet, coastal and corrosive environments where metallic components may require additional corrosion protection.
However, corrosion resistance is not identical for every FRP rod. Resin selection, chemical concentration, temperature and exposure duration should be evaluated for demanding chemical applications.
Electrical Insulation
FRP is electrically non-conductive, which makes fiberglass rods useful in applications where electrical insulation is important. Typical examples include electrical support structures, insulation components and selected telecommunications applications.
Weather and UV Resistance
Fiberglass pultruded rods can be manufactured for outdoor use, but long-term weathering performance depends on the resin system, surface condition and any UV protection used. For permanent outdoor installations, the environmental exposure should be included in the material specification.
Dimensional Stability
Pultrusion produces continuous profiles with a controlled cross-section. This makes fiberglass rods suitable for applications where consistent diameter and repeatable dimensions are important.
Where Are Fiberglass Pultruded Rods Used?
1. Electrical and Power Applications
Because FRP is non-conductive and corrosion resistant, fiberglass rods can be used in electrical support and insulation-related applications.
Typical applications include:
- Electrical insulation components
- Support rods
- Utility structures
- Switchgear-related components
- Telecommunication support systems
The exact electrical requirements should always be confirmed against the voltage, insulation system and applicable project specifications.
2. Construction and Structural Reinforcement
Fiberglass rods can be used as lightweight structural or reinforcement components where corrosion resistance and ease of handling are important.
They may be incorporated into frames, supports, barriers, composite structures and custom assemblies. For load-bearing applications, engineers should evaluate the complete structural system rather than selecting a rod solely by diameter.
3. Agricultural Structures
FRP rods are suitable for selected agricultural applications because they resist moisture and do not rust. Common uses include greenhouse supports, plant support systems, fencing components and agricultural frames.
4. Marine and Coastal Applications
Saltwater and humid environments can accelerate corrosion of conventional steel. Fiberglass rods provide a non-metallic alternative for selected marine structures, fencing, supports and reinforcement components.
5. Industrial Equipment and Frameworks
In chemical plants, wastewater facilities and industrial production areas, fiberglass rods can be used where corrosion resistance and electrical insulation are useful design characteristics.
6. Custom Composite Components
Because pultrusion can produce continuous profiles with customized dimensions, FRP rods can also be manufactured for OEM components and project-specific assemblies.
How to Choose the Right Fiberglass Rod Diameter
Choosing the correct diameter is more than selecting the largest available rod. An efficient specification balances mechanical requirements, installation conditions, environmental exposure and cost.
Step 1: Define the Load
Determine whether the rod is subjected primarily to tension, compression, bending, shear or a combination of loads. The load case has a direct effect on the required cross-section and support arrangement.
Step 2: Check Unsupported Length
A rod with a small diameter may perform adequately when closely supported but behave differently when installed over a longer unsupported distance. For compression or bending applications, stability and deflection should also be considered.
Step 3: Evaluate the Environment
Identify exposure to water, salt spray, chemicals, UV radiation, temperature changes and other environmental conditions. Resin selection should reflect the actual service environment.
Step 4: Confirm the Connection Method
FRP rods can be cut and fabricated for different assemblies, but the connection method affects the effective structural performance. Drilled holes, clamps, adhesive bonding and mechanical fittings should be evaluated for the actual application.
Step 5: Consider Handling and Transportation
Long rods can reduce the number of joints in an assembly but may increase packaging and transportation requirements. For international projects, standard lengths and custom cut lengths should be compared before finalizing the order.
Fiberglass Pultruded Rod vs Steel Rod
| Factor | Fiberglass Pultruded Rod | Steel Rod |
|---|---|---|
| Corrosion | Excellent resistance; depends on resin and environment | Requires corrosion protection in many environments |
| Electrical Conductivity | Non-conductive | Conductive |
| Weight | Lightweight | Higher density |
| Maintenance | Generally low maintenance | May require coating or corrosion protection |
| Fabrication | Can be cut and machined with suitable tools | Commonly cut, drilled or welded |
| Best Fit | Corrosive, wet or electrically sensitive environments | Applications prioritizing conventional metallic structural systems |
The comparison should not be reduced to material strength alone. Steel and FRP have different elastic, thermal and failure characteristics, so structural substitution should always be checked by the responsible engineer.
Fiberglass Rod vs Other FRP Pultruded Profiles
Fiberglass rods are only one type of pultruded FRP profile. The correct cross-section depends on how the component will be loaded and connected.
| FRP Profile | Typical Role | When to Consider It |
|---|---|---|
| FRP Rod | Reinforcement, insulation and support components | When a solid circular section is suitable |
| FRP Square Tube | Frames, supports and structural assemblies | When a hollow square section simplifies framing |
| FRP Rectangular Tube | Frames, enclosures and support structures | When directional dimensions are important |
| FRP Channel | Beams, supports and framing | When an open structural section is preferred |
| FRP Angle | Bracing, framing and reinforcement | When two-leg connection geometry is required |
Preet's pultrusion profile range includes rods, square and rectangular tubes, channels, angles and other structural profiles, allowing the cross-section to be selected according to the project rather than forcing every application into one profile type.
For related profile information, see Understanding FRP Pultrusion Profiles and Fiberglass Rectangular Tubes: Dimensions, Applications and Selection Guide.
Fiberglass Pultruded Rod Selection Checklist
Before ordering FRP rods, confirm the following information with the manufacturer:
- Required rod diameter
- Required finished length
- Required quantity
- Primary load type
- Unsupported span or installation distance
- Required resin system
- Temperature and chemical exposure
- Indoor or outdoor installation
- UV exposure requirements
- Color and surface requirements
- Connection or machining requirements
- Required drawings, samples or test data
Providing these details allows the manufacturer to recommend a profile that is matched to the actual engineering and operating conditions instead of supplying a generic fiberglass rod.
Why Work With a Fiberglass Pultruded Rod Manufacturer?
For industrial FRP components, manufacturing consistency is important because diameter, resin content, fiberglass reinforcement and curing conditions can affect the final properties of the profile.
A qualified manufacturer should be able to provide dimensional information, material options, customization support and technical assistance for project-specific requirements.
Preet provides fiberglass pultruded rods in customized diameters, lengths, colors and mechanical specifications, with current product information covering electrical, agricultural, marine, construction and industrial applications.
View Fiberglass Pultruded Rods to discuss available specifications, samples and custom production.
Frequently Asked Questions
What are fiberglass pultruded rods used for?
Fiberglass pultruded rods are used for electrical insulation components, agricultural supports, marine structures, fencing, reinforcement, structural components and other applications where lightweight, corrosion resistance and electrical insulation are valuable.
What sizes are available for fiberglass pultruded rods?
Available dimensions depend on the manufacturer. Preet currently lists fiberglass pultruded rods from 3 mm to 60 mm in diameter, with standard lengths from 1000 mm to 6000 mm and customized sizes available.
Are fiberglass rods stronger than steel rods?
Strength should not be compared using one number alone. FRP and steel have different tensile, compressive, bending and stiffness characteristics. The appropriate material should be selected according to the complete load case, geometry, support conditions and safety requirements.
Can fiberglass pultruded rods be used outdoors?
Yes, fiberglass rods can be specified for outdoor applications. However, UV exposure, moisture, temperature and resin selection should be evaluated for long-term service.
Can FRP rods be customized?
Yes. Depending on the manufacturing requirements, diameter, length, color, resin system and mechanical specifications can be customized.
Conclusion
Fiberglass pultruded rods provide a practical combination of continuous fiberglass reinforcement, lightweight construction, corrosion resistance and electrical insulation. They can be used across electrical, agricultural, marine, construction and industrial applications.
The correct rod should be selected according to diameter, length, load condition, environment, resin system and connection method. For demanding applications, engineering requirements should be confirmed before production.
Preet can provide customized fiberglass pultruded rods and other FRP pultrusion profiles for project-specific requirements.
