Introduction

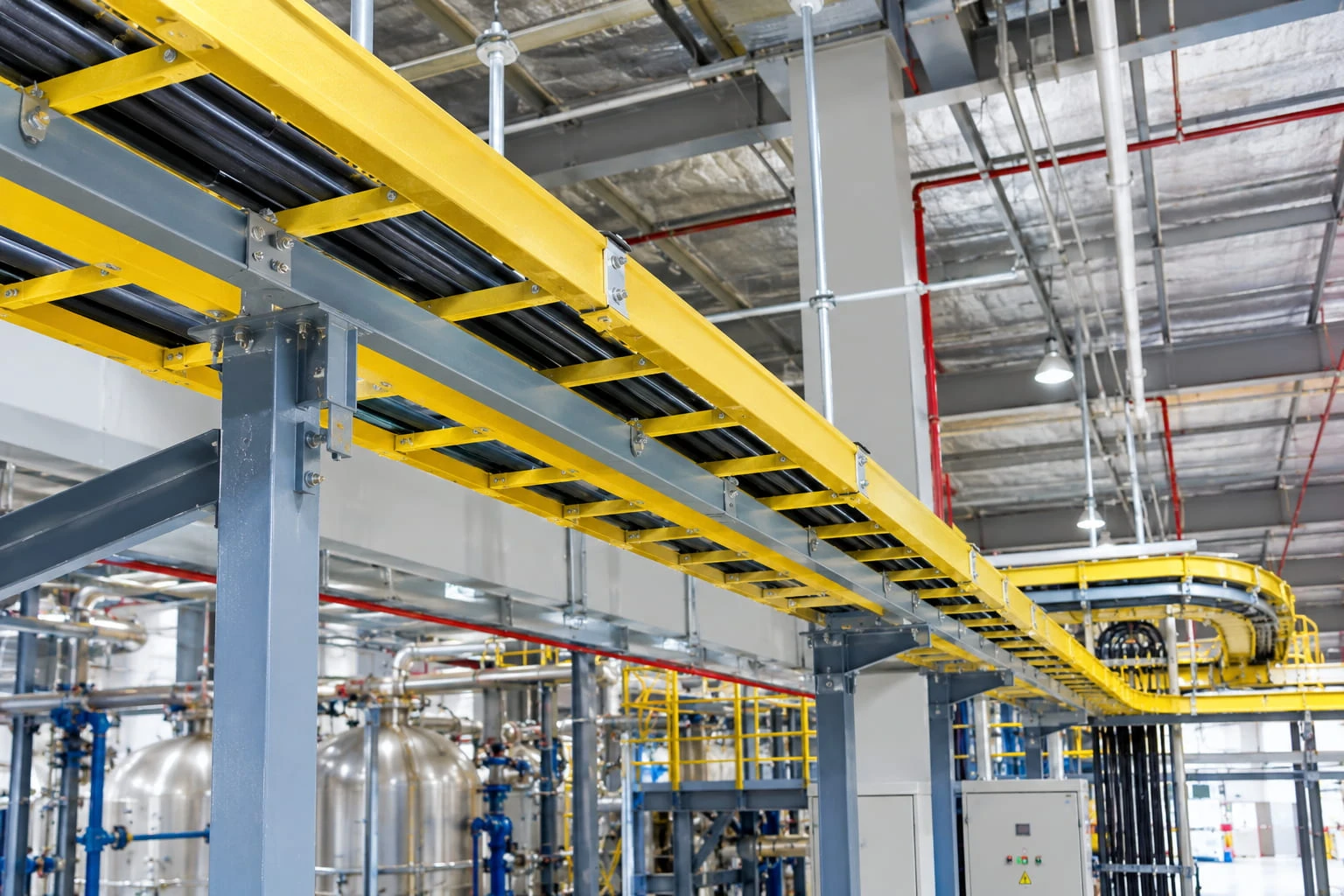

FRP cable trays are used in industrial facilities where corrosion resistance, lightweight construction, and electrical insulation are important considerations. However, choosing the right tray is only one part of a reliable cable management system. Support arrangements, connection details, cable routing, and installation quality also influence the performance of the completed installation.
Fiberglass reinforced plastic (FRP) cable trays are available in different configurations, including ladder-type, perforated, channel, and solid-bottom designs. Each configuration has different characteristics, so the installation method should match the selected product and the requirements of the project.
This guide explains the main considerations for planning and inspecting an FRP cable tray installation in industrial environments.
1. Review the Cable Tray Layout Before Installation
A clear installation layout helps prevent routing conflicts and unnecessary modifications during construction. Before installing the tray, review the approved drawings and identify the cable routes, support locations, direction changes, branch connections, and access points.
Confirm the Main Cable Routes
Map the route from the cable origin to the destination. Identify where the tray must pass around structural columns, pipes, equipment, walls, and other services. The layout should provide adequate space for cable installation, inspection, and future maintenance.
Check the Installation Environment
Industrial cable trays may be exposed to moisture, salt spray, chemical vapors, ultraviolet radiation, or elevated temperatures. Confirm that the selected FRP material and resin system are suitable for the actual environment. Where fire performance is required, verify the applicable project specifications and product documentation.
Coordinate with Other Services
Check the proposed route against mechanical piping, ventilation equipment, electrical enclosures, and structural members. Coordination before installation reduces the need for field cutting or unexpected changes in cable direction.
2. Determine Appropriate Support Locations
Support spacing is one of the most important structural considerations in cable tray installation. The required spacing depends on the tray design, profile dimensions, cable load, span, connection details, and the manufacturer's load data.
Do not assume that every FRP cable tray can use the same support interval. A spacing suitable for one tray configuration may not be suitable for another.
Consider the Complete Installed Load
Evaluate the expected cable load and any other loads that the tray system is specifically designed to carry. Consider the planned cable quantity, cable weight, future additions, and the loads associated with the installation environment. Do not use a cable tray as a walkway or general-purpose platform unless the system is expressly designed and approved for that purpose.
Follow Manufacturer Load and Span Data
Use the manufacturer's technical documentation to determine the permitted support span for the selected tray and loading condition. Check allowable deflection and any applicable structural design requirements before finalizing support positions.
Where the route includes bends, tees, reducers, joints, or changes in elevation, review the support requirements for those locations separately. Additional or repositioned supports may be required according to the product design and project specifications.
Inspect the Support Structure
Supports must be properly anchored to a suitable structural element and aligned with the approved layout. Verify that the supporting steelwork or FRP structure can carry the design loads and that the attachment details are compatible with the site environment.
3. Select Compatible Fasteners and Connection Details
Connections are essential to the integrity of an FRP cable tray system. Fasteners and joining components should be selected based on the tray design, expected loads, environmental exposure, and manufacturer recommendations.
Choose Fasteners for the Environment
In corrosive or coastal locations, fastener material deserves particular attention. Stainless steel or other corrosion-resistant options may be appropriate, but the correct grade depends on the actual chemical and atmospheric exposure. Confirm compatibility with the FRP components and all adjacent metals.
Follow the Approved Joining Method
Use the specified connectors, splice plates, bolts, washers, and other accessories for the selected tray system. Drill holes and make field modifications only where permitted by the manufacturer's instructions and approved engineering details.
Avoid excessive tightening that could damage the composite material. Follow the specified torque requirements where provided, and check that connections are secure without causing cracking, crushing, or other visible damage.
Check Electrical Bonding and Grounding Requirements
FRP is generally electrically non-conductive, unlike conventional metallic cable tray. This characteristic does not eliminate the need to assess electrical safety. The electrical designer must determine whether separate bonding, grounding, protective conductors, or other measures are required by the applicable codes and project design.
4. Plan Cable Routing and Tray Fill
Good cable routing supports orderly installation, easier maintenance, and reliable operation. The tray configuration should be suitable for the cable types and the environmental conditions in which they will operate.
Select a Suitable Tray Configuration
- Ladder-type tray: Open construction with cross members, often considered for power cables and routes where access and ventilation are important.
- Perforated tray: A supported base with openings that can assist ventilation while providing a more continuous cable-supporting surface.
- Channel tray: A compact option for certain smaller cable groups and control-cable applications, subject to product ratings.
- Solid-bottom tray: A continuous base that may be specified where the design calls for additional protection from falling debris or environmental exposure. The required enclosure or cover should be assessed separately.
These are general configuration descriptions, not a substitute for the manufacturer's product ratings or the project's cable-management requirements.
Check Cable Capacity and Separation
Confirm that the tray width, usable area, and permitted cable fill comply with the applicable electrical code and project specifications. Power cables, control cables, instrumentation cables, and communication cables may require separation or dedicated routing depending on the system design.
Plan sufficient room for cable installation and future maintenance. Avoid overcrowding the tray, and do not exceed the cable quantity or loading assumptions used in the design.
Observe Cable Bend Radius
Cables must not be bent more tightly than their specified minimum bend radius. Check the cable manufacturer's recommendations when designing horizontal bends, vertical bends, and transitions between tray sections.
Ensure that the tray's fittings and the available installation space allow cables to follow a smooth route without sharp edges, pinching, or excessive pulling tension.
5. Consider Outdoor and Corrosive Conditions
FRP cable trays are often considered for industrial environments where metallic systems may require frequent corrosion protection. Even so, the expected service conditions must be reviewed before the tray is specified and installed.
UV and Weather Exposure
Outdoor installations may be exposed to sunlight, rain, temperature variation, and wind. Confirm that the selected tray system is suitable for the expected exposure and that its supports and fasteners are designed for the site conditions.
Chemical Compatibility
Resistance to chemicals varies with resin formulation, chemical concentration, temperature, and exposure duration. For facilities handling aggressive chemicals, provide the supplier with the relevant environmental information and obtain confirmation that the proposed material is suitable.
Drainage and Water Accumulation
Consider how water will drain from the installation and whether the selected tray configuration is appropriate for the location. Where covers are required, confirm their compatibility with the tray and account for any additional loads or environmental effects.
6. Inspect the Installation Before Handover
A structured inspection helps identify installation issues before cables are energized or the system is placed into service. The inspection should follow the approved drawings, manufacturer instructions, and applicable project requirements.
| Inspection Item | What to Verify |
|---|---|
| Tray alignment | Route, elevation, and direction match the approved layout. |
| Support spacing | Support locations comply with the approved design and product load data. |
| Connections | Splice plates, fasteners, and fittings are installed as specified. |
| FRP condition | No visible cracking, delamination, or unapproved field modifications. |
| Cable routing | Cable fill, separation, bend radius, and support follow the project requirements. |
| Environmental suitability | Materials and accessories are suitable for the actual operating environment. |
| Electrical requirements | Required bonding, grounding, and other electrical safety measures have been reviewed by the responsible designer. |
Record any defects or deviations and resolve them before handover. Changes to support spacing, connections, or cable loading should be reviewed by the responsible engineer rather than improvised in the field.
7. Common FRP Cable Tray Installation Mistakes
Using a Standard Support Span Without Checking the Load
Support spacing must be based on the specific tray configuration and design load. Using an assumed spacing without checking the load tables can result in excessive deflection or an unsuitable installation.
Mixing Incompatible Accessories
Accessories that do not fit the selected tray system may create connection problems or compromise the intended performance. Confirm component compatibility before procurement and installation.
Ignoring Field Modifications
Unapproved drilling, cutting, or other modifications can affect the performance of FRP components. Review any required changes with the manufacturer or responsible engineer before proceeding.
Overlooking Future Cable Additions
A tray that is adequate for the initial cable load may not be suitable for future expansion. Consider planned spare capacity and additional cable routes during the design stage, while remaining within the permitted tray and support ratings.
Treating FRP as a Complete Electrical Safety Solution
The non-conductive nature of FRP can be useful in electrical installations, but it does not replace the need for proper cable insulation, protective devices, grounding arrangements where required, or compliance with electrical codes.
8. Choosing an FRP Cable Tray Supplier
A suitable supplier should be able to provide product information that supports engineering review and installation planning. Before placing an order, consider asking for:
- Tray type, dimensions, and available accessories.
- Load and span data for the specified configuration.
- Material and resin information relevant to the installation environment.
- Applicable fire-performance documentation and test reports, where required.
- Connection details, installation instructions, and available customization options.
Provide the supplier with the intended application, cable loading information, support layout, environmental conditions, and relevant project standards. This makes it easier to evaluate whether the proposed product is appropriate for the installation.
Explore the FRP Cable Tray product range for available configurations and product information. For related structural profile considerations, visit the FRP Pultrusion Profiles Design Guide.
Conclusion
A reliable FRP cable tray installation starts with a coordinated layout and continues through support design, compatible connections, careful cable routing, and a documented final inspection. Support spacing and loading should always be verified against the selected product's technical data and the approved project design.
By considering the installation environment and electrical requirements from the beginning, project teams can develop a cable management system that is easier to install, inspect, and maintain.
